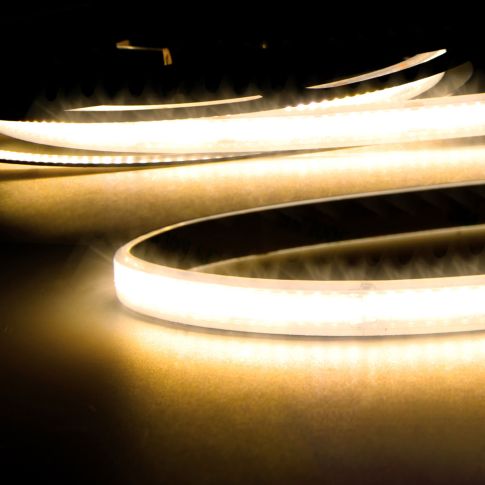

LED AQUA CRI930 Linear 48V flex stripe, 13W, IP68, 3000K, 20m roll, 240 LED/m
In stock
Article number
114243
| Article number | 114243 |
|---|---|
| Product description | LED AQUA CRI930 Linear 48V flex stripe, 13W, IP68, 3000K, 20m roll, 240 LED/m |
| GTIN - EAN | 9009377074660 |
| Features |        |
| Special features | Separation point: 50mm with 12 SMD each | Pitch (light point center-center): 4,17mm | 1 unit (roll) = 20m | max. flex stripe length per infeed: 20m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | silicone encapsulation | Special feature: connection cable on both sides |
| Nominal voltage | 48 V DC |
| Efficiency in LM | 84 |
| Rated power | 13 W/m |
| Active power | 13 W/m |
| Luminous flux in lumen | 1100 lm/m |
| RGB light source | No |
| Color temperature | 3000K |
| Enclosed accessories | 4 Endkappen | 40 Montagebügel |
| CRI Ra | 95 |
| Cooling mass g/m | 75.00 g/m |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming type | PWM |
| Permissible ambient temp. | -20°C - 45°C |
| Pitch SMD (mm) | 4.17 |
| Type de ruban adhésif | 3M 300LSE |
| Protection class | IP68 |
| Outdoor | Y |
| Housing material | Silicone |
| Poids en grammes | 1310 |
| Length in mm | 20000,0 |
| Width in mm | 12,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
