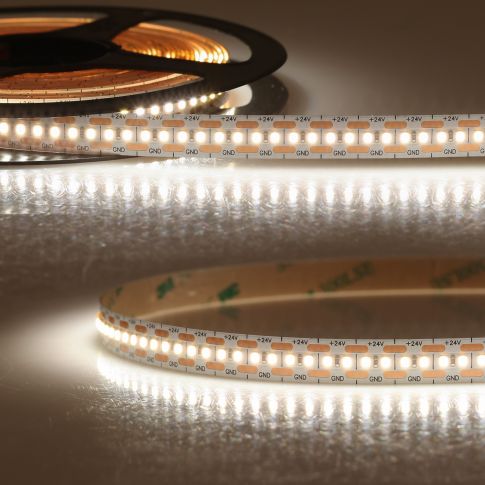

LED CRI930 Linear10 flex stripe, 24V DC, 22W, IP20, 3000K, 5m roll, 300 LED/m
In stock
Article number
112708
| Article number | 112708 |
|---|---|
| Product description | LED CRI930 Linear10 flex stripe, 24V DC, 22W, IP20, 3000K, 5m roll, 300 LED/m |
| GTIN - EAN | 9009377038778 |
| Features |       |
| Special features | Separation point: 10mm with 3 SMD each | Pitch (light point center-center): 3,33mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 280 gr/m | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Efficiency in LM | 105 |
| Rated power | 22 W/m |
| Active power | 18 W/m |
| Luminous flux in lumen | 1900 lm/m |
| RGB light source | No |
| Properties of connection cable | Anschlusskabel beidseitig |
| Color temperature | 3000K |
| CRI Ra | 95 |
| LED chips per metre | 300,00 |
| LED/disconnection point | 3.000000 |
| LED/roll | 1.500,00 |
| Cooling mass g/m | 280.00 g/m |
| Beam angle | 120° |
| Dimmable | Ja |
| Matching connectors | K2-210 |
| Dimming type | PWM |
| Permissible ambient temp. | 0°C - 45°C |
| Pitch SMD (mm) | 3.33 |
| Max. length per feed (m) | 5.00 m |
| Type de ruban adhésif | 3M VHB |
| Protection class | IP20 |
| Outdoor | N |
| Poids en grammes | 102 |
| Length in mm | 5000,0 |
| Width in mm | 10,0 |
| Height in mm | 1,3 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
| LED/disconnection point | 3.00 |
