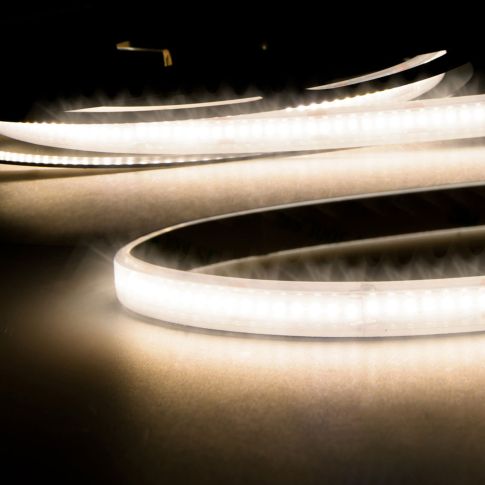

LED CRI930 Linear11 flex stripe, 24V DC, 10W, IP54, 3000K, 5m roll, 239 LED/m
In stock
Article number
113155
| Article number | 113155 |
|---|---|
| Product description | LED CRI930 Linear11 flex stripe, 24V DC, 10W, IP54, 3000K, 5m roll, 239 LED/m |
| GTIN - EAN | 9009377048845 |
| Features |        |
| Special features | Separation point: 25mm with 6 SMD each | Pitch (light point center-center): 4,17mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | silicone encapsulation | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Efficiency in LM | 90 |
| Rated power | 10 W/m |
| Active power | 10 W/m |
| Luminous flux in lumen | 900 lm/m |
| RGB light source | No |
| Properties of connection cable | Anschlusskabel beidseitig |
| Color temperature | 3000K |
| Enclosed accessories | 4 Endkappen | 20 Montagebügel |
| CRI Ra | 93 |
| LED chips per metre | 240,00 |
| LED/disconnection point | 6.000000 |
| LED/roll | 1.200,00 |
| Cooling mass g/m | 75.00 g/m |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming type | PWM |
| Permissible ambient temp. | -20°C - 45°C |
| Potting material | Silikon |
| Pitch SMD (mm) | 4.17 |
| Max. length per feed (m) | 5.00 m |
| Type de ruban adhésif | 3M 300LSE |
| Protection class | IP54 |
| Outdoor | Y |
| Housing material | Silicone |
| Poids en grammes | 252 |
| Length in mm | 5000,0 |
| Width in mm | 11,0 |
| Height in mm | 5,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
| LED/disconnection point | 6.00 |
