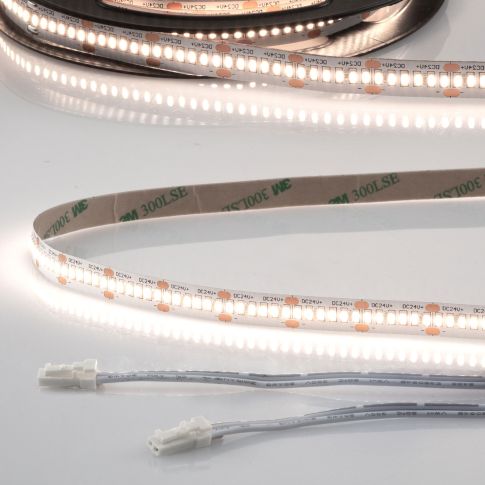

LED CRI940 MiniAMP flex stripe 24V DC, 12W, IP20, 4000K 250cm, 30cm cable both s.+maleAMP 300 LED/m
In stock
Article number
114524
| Article number | 114524 |
|---|---|
| Product description | LED CRI940 MiniAMP flex stripe 24V DC, 12W, IP20, 4000K 250cm, 30cm cable both s.+maleAMP 300 LED/m |
| GTIN - EAN | 9009377081095 |
| Features |       |
| Special features | Separation point: 20mm with 6 SMD each | Pitch (light point center-center): 3,33mm | 1 unit (roll) = 2,5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 | 30cm connection cable on both sides with maleAMP, wire cross-section 0,5mm² |
| Nominal voltage | 24 V DC |
| Efficiency in LM | 95 |
| Rated power | 12 W/m |
| Active power | 12 W/m |
| Luminous flux in lumen | 1150 lm/m |
| RGB light source | No |
| Color temperature | 4000K |
| CRI Ra | 93 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming type | PWM |
| Permissible ambient temp. | 0°C - 40°C |
| Pitch SMD (mm) | 3.33 |
| Type de ruban adhésif | 3M 300LSE |
| Protection class | IP20 |
| Outdoor | N |
| Poids en grammes | 42 |
| Length in mm | 2500,0 |
| Width in mm | 10,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Guarantee in years | 2 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
