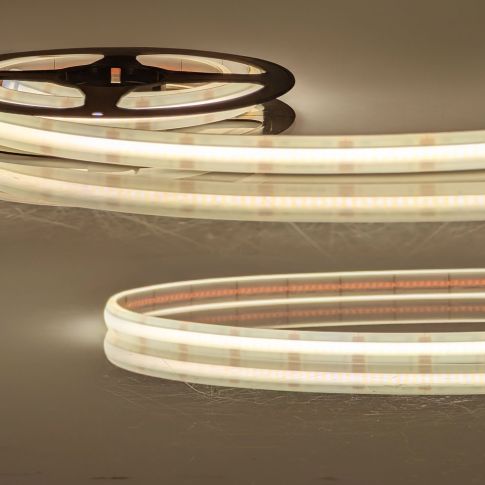

LED HT927/960 CCT flex stripe for up to 100°C environment, 24V DC, 10W|10W, IP68, 5m roll, 640 LED/m
In stock
Article number
116929
| Article number | 116929 |
|---|---|
| Product description | LED HT927/960 CCT flex stripe for up to 100°C environment, 24V DC, 10W|10W, IP68, 5m roll, 640 LED/m |
| GTIN - EAN | 9009377168734 |
| Features |         |
| Special features | Separation point: 25mm with 16 SMD each | Pitch (light point center-center): 3,13mm | 1 unit (roll) = 5m | max. flex tape length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | Silicone encapsulation | Special feature: connection cable on both sides | Accessories included: end caps, mounting bracket and sealant |
| Nominal voltage | 24 V DC |
| Efficiency in LM | 87 |
| Rated power | 10 W/m |
| Active power | 10 W/m |
| Luminous flux in lumen | 870 lm/m |
| RGB light source | No |
| Color temperature | 2700K - 6000K |
| Enclosed accessories | 4 Endkappen | 10 Montagebügel | 21 Schauben |
| CRI Ra | 95 |
| Cooling mass g/m | 0.00 g/m |
| Beam angle | 110° |
| Dimmable | Ja |
| Dimming type | PWM |
| Permissible ambient temp. | -25°C - 100°C |
| Pitch SMD (mm) | 3.00 |
| Type de ruban adhésif | 3M VHB |
| Protection class | IP68 |
| Outdoor | Y |
| Housing material | Silicone |
| Poids en grammes | 210 |
| Length in mm | 5000,0 |
| Width in mm | 12,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
