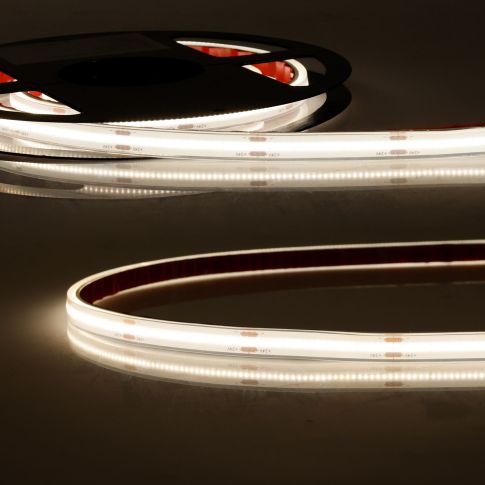

LED HT930 COB flex stripe for up to 100°C ambient temp., 24V DC, 14,4W, IP68, 3000K, 5m, 480 LED/m
In stock
Article number
116132
| Article number | 116132 |
|---|---|
| Product description | LED HT930 COB flex stripe for up to 100°C ambient temp., 24V DC, 14,4W, IP68, 3000K, 5m, 480 LED/m |
| GTIN - EAN | 9009377155260 |
| Features |       |
| Special features | Separation point: 50mm with 24 SMD each | Pitch (light point center-center): 2,08mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M VHB adhesive tape | clean and degrease substrate before sticking! Do not peel off again! | silicone encapsulation | SPECIAL FEATURE: connection cable on both sides | enclosed accessories: end caps, mounting bracket |
| Nominal voltage | 24 V DC |
| Efficiency in LM | 90 |
| Rated power | 14,4 W/m |
| Active power | 14,4 W/m |
| Luminous flux in lumen | 1300 lm/m |
| RGB light source | No |
| Color temperature | 3000K |
| Enclosed accessories | 2 Endkappen, 2 Anschlusskappen, 20 Montagebügel |
| CRI Ra | 90 |
| Cooling mass g/m | 0.00 g/m |
| Beam angle | 110° |
| Dimmable | Ja |
| Dimming type | PWM |
| Permissible ambient temp. | -20°C - 100°C |
| Pitch SMD (mm) | 2.08 |
| Type de ruban adhésif | 3M VHB |
| Protection class | IP68 |
| Outdoor | N |
| Housing material | Silicone |
| Poids en grammes | 320 |
| Length in mm | 5000,0 |
| Width in mm | 11,0 |
| Height in mm | 5,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
