LED Linear Batten and Special Luminaires: Modern Lighting Solutions
LED linear lights at a glance

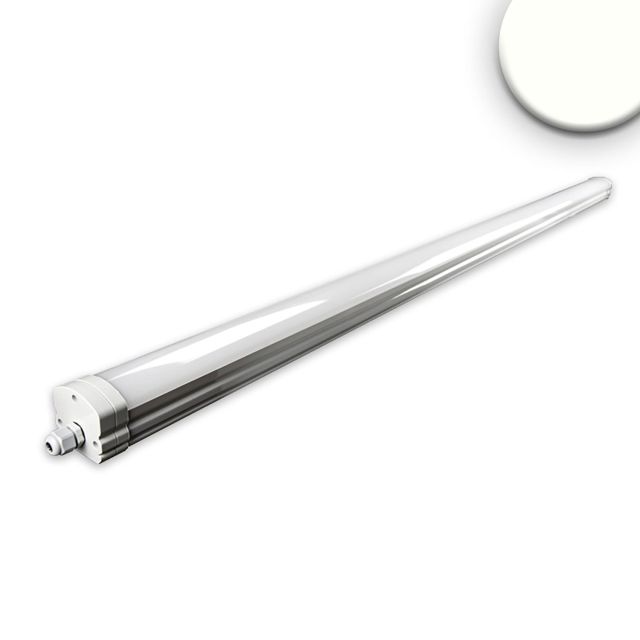

The lights are not dimmable. All luminaires (except art. 114571) are suitable for indoor and outdoor use. * Switches to battery operation with 600 lm for 3 hours Lithium battery 7.2 V/2600 mAh in case of power failure; battery not replaceable.Article Length in mm Kelvin Lumen Protection class Watt IK Value Special features LED Linear light HP114655 1200 5000 4000 IP69K 35 10 Ammonia resistant, suitable for high pressure/steam cleaning, shockproof and dustproof LED Bar Light114571 1220 3000 4000 6000 4700 IP20 40 - Color switch, only suitable for indoor use LED Bar Light115481 1500 3000 4000 6000 4700 IP20 40,5 - Color switch, only suitable for indoor use LED Linear Light112704 1300 4000 3760 IP65 36 08 Shockproof LED Linear Light112705 1300 2700 3170 IP65 36 08 Shockproof LED Linear Light113092 1600 4000 4200 IP65 42 08 Shockproof LED Linear Light114652 1300 4000 3760 IP65 36 08 RF-Motion detector LED Linear Light114653 1600 4000 4200 IP65 45 08 RF-Motion detector LED Linear Light Professional113563 1500 4000 5100 IP66 40 10 D-marking, 5 years warranty LED Linear Light Professional113565* 1500 4000 5100 IP66 40 10 D marking, emergency light function* LED Linear Light Professional113564 1500 4000 7500 IP66 60 10 D-marking, 5 years warranty LED Linear Light Professional115150 1200 4000 5500 IP66 35 10 D-marking, 5 years warranty LED Linear Light Professional115151 1500 4000 6700 IP66 45 10 D-marking, 5 years warranty LED Linear Light Professional115152 1200 4000 5500 IP66 60 10 D-marking, 5 years warranty LED Linear Light Professional115153 1500 4000 5100 IP66 60 10 D-marking, 5 years warranty LED diffuser luminaires114149 1190 3000 4000 6000 2600-5050 IP65 25-40 08 Color switch, power switch, D marking, 5 year guarantee LED diffuser luminaires114150 1490 3000 4000 6000 3900-7750 IP65 35-60 08 Color switch, power switch, D marking, 5 year guarantee LED diffuser luminaires115643 1240 4000 4800 IP65 35-60 08 power switch, 5 year guarantee LED diffuser luminaires115644 1240 6000 4800 IP65 35-60 08 power switch, 5 year guarantee LED diffuser luminaires115641 2540 4000 7200 IP65 335-60 08 power switch, 5 year guarantee LED diffuser luminaires115642 1540 6000 7200 IP65 35-60 08 power switch, 5 year guarantee LED diffuser luminaires115764 1572 4000 7280 IP66 53 10 For potentially explosive atmospheres, shock and impact resistant LED diffuser luminaires115765 1572 6000 7280 IIP66 53 10 For potentially explosive atmospheres, shock and impact resistant LED surface and under-cabinet luminaire114064 590 3000 4000 6000 2000 IP42 20 08 Color switch LED surface and under-cabinet luminaire114065 1190 3000 4000 6000 4000 IP42 40 08 Color switch LED Linear light HP114655 1500 4000 7500 IP69K 48 10 Ammonia resistant, suitable for high pressure/steam cleaning, shockproof and dustproof LED Linear light HP116126 1500 6000 8500 IP69K 48 10 Ammonia resistant, suitable for high pressure/steam cleaning, shockproof and dustproof LED bar light116007 1220 3000 4000 6000 5550 IP42 37 - Color switch, only suitable for indoor use LED bar light116019 1220 3000 4000 6000 5550 IP42 37 - Color switch, only suitable for indoor use LED bar light116039 1220 3000 4000 6000 5550 IP42 37 - Color switch, only suitable for indoor use LED bar light116020 1220 3000 4000 6000 5550 IP42 37 - Color switch, only suitable for indoor use LED Tri Proof luminaires116026 190 3000 4000 6000 5050 IP65 25-40 08 Color switch, power switch, D marking, 5 year guarantee LED Tri Proof luminaires116027 1490 3000 4000 6000 7750 IP65 35-60 08 Color switch, power switch, D marking, 5 year guarantee
LED LINEAR LIGHT
HIGH PROTECTION
| Ammonia resistant Impact resistant IK10 | |
| 3-pole through-wired |
|
| Lined up: 120 cm to 30 luminaires 150 cm to 21 luminaires |
LED BAR LIGHT
| Color Switch | |
| Simple and quick assempbly |
|
| Variable mounting option |

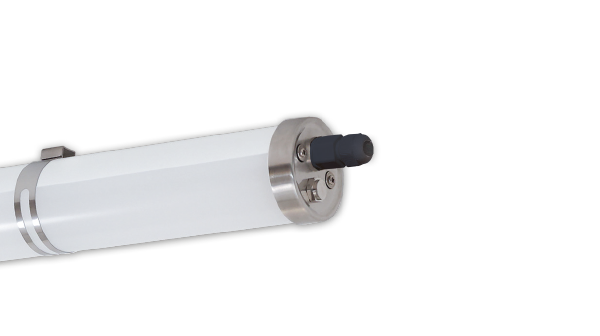

LED LINEAR LUMINAIRE HP
| IP69K | |
| shockproof | |
| 7500-8000 Lm |
LED LINEAR LIGHTS
| Up to 23 luminaires strung together | |
| Class II luminaires with sealed cable entry |
|
| 1.000 watts without additional parallel power infeed |
LED LINEAR LIGHTS PROFESSIONAL
| Up to 25 luminairess strung together | |
| Plug-in/screw terminals on both sides, through-wired |
|
| Simple and quick installation with click-system (incl. Accessories) |
LED SURFACE AND UNDER-CABINET LUMINAIRE
| Color Switch | |
| 3-pol 50cm long connection cable including Wago 221-413 spring clamp |
LED DIFFUSER LUMINAIRES
| Color Switch | |
| Power Switch Technology |
|
| With stainless steel clamp |
LED DIFFUSER LUMINAIRES ATEX II
| For hazardous areas of group II, category 3 | |
| Shock and impact resistant housing (IK10) | |
| EN 2014/34/EU conform |
LED TRI PROOF LUMINAIRE
| Power Switch Technology | |
| 3-pole through-wired | |
| With stainless steel clamp |
LED PROOF LUMINAIRE SL
| Power Switch | |
| With HF Sensor |
Projects that were done using articles from this category
LED Diffuser Lights - The Latest LED Technology in a Familiar Design
ISOLED® offers high-quality LED diffuser lights with stainless steel brackets including fixing material, side or rear connection option and 5-pole spring plug-in terminal with two contacts each for practical through-wiring and rewiring. The colour temperature can be selected and the power consumption regulated using the colour switch and power switch. This means that the LED diffuser light can be optimally adapted to the area of application.
The power consumption of LED diffuser luminaires with Power Switch technology can be limited. This saves energy costs and reduces the light output. Important: Only operate the dip switch to change the power consumption when the LED diffuser light is switched off.
LED diffuser lights are perfect for replacing old light sources with energy-efficient LED technology without having to sacrifice the iconic design of the diffuser light.
LED Diffuser Light ATEX II for Potentially Explosive Areas of Group 2, Category 3 (Zone 2, 22)
This LED diffuser luminaire is suitable for environments where there is a risk of explosion of gas, dust and flammable vapours. The luminaire is resistant to dust, moisture and splash water. The polycarbonate housing and diffuser are impact and shock resistant (IK10). The luminaire fulfils the requirements of Directive EN 2014/34/EU.
