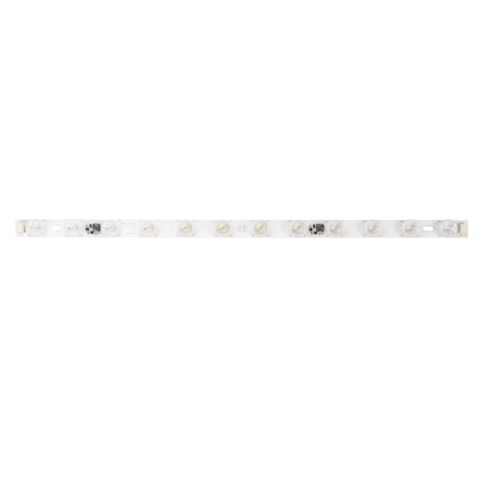

LED module for lightboxes, 9x19°, 635x25x13.4mm, 24V DC, 7500K, 12 LEDs with 3.5W per LED, IP20
In stock
Article number
117969
| Features |      |
|---|---|
| Article number | 117969 |
| Product description | LED module for lightboxes, 9x19°, 635x25x13.4mm, 24V DC, 7500K, 12 LEDs with 3.5W per LED, IP20 |
| GTIN - EAN | 9009377183621 |
| Dimmable | Ja |
| Dimming type | PWM |
| Luminous flux in lumen | 6000 lm |
| Beam angle | 19° |
| Pivotable | N |
| Color temperature | 7500K |
| CRI Ra | 79 |
| Nominal voltage | 24 V DC |
| Rated power | 42 W |
| Efficiency in LM | 142 |
| Active power | 42 W |
| Energy efficiency class | D |
| Outdoor | N |
| ext. Transformer height | 0.00 |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| RGB light source | No |
| Length in mm | 635,0 |
| Width in mm | 25,0 |
| Height in mm | 13,4 |
| Pitch SMD (mm) | 0.00 |
| Weight in gram | 0,00 |
| Beam angle type | Horizontal + Vertical |
| Guarantee in years | 3 |
| Lifetime L70|B10 | 50000 |
| Walkable | N |
| incl. illuminant | N |
| UL Certified | N |
| Bulky goods | N |
| Protection class II | N |
| TÜV Süd certified | N |
| SELV | N |
| Excess lengths | N |
| M Label transformer | N |
| Shock and impact resistant | N |
| Temperature-protected transformer 110 | N |
| F Trafo license plate | N |
| VDE | N |
| Quick installation | N |
| Suitable for emergency lighting | Y |
| EMC | N |
| TÜV Rheinland certified | N |
| MM Indicator Transformer | N |
| Short circuit proof | N |
| Net price | N |
| Separation point (mm) | 0.00 mm |
| Cooling mass g/m | 0.00 g/m |
| Max. length per feed (m) | 0.00 m |
| Useful life L70|B50 | 75000 |
| Useful life L80|B50 in hours | 66000 |
| Protection class | IP20 |
