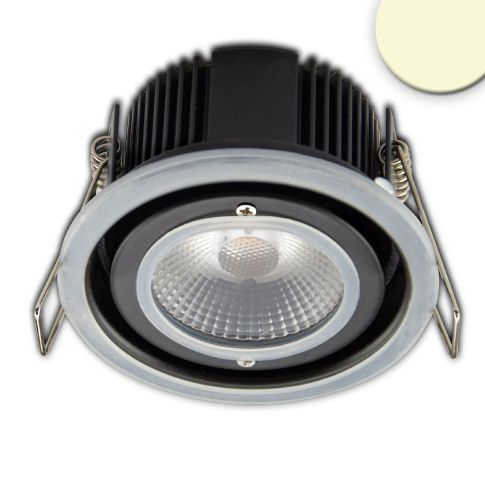

LED Recessed spotlight Sys-68, 10W, IP65, warm white, dimmable (excl. cover)
In stock
Article number
113056
| Article number | 113056 |
|---|---|
| Product description | LED Recessed spotlight Sys-68, 10W, IP65, warm white, dimmable (excl. cover) |
| GTIN - EAN | 9009377046544 |
| Features |           |
| Special features | The spotlight is supplied as standard without the required cover. Different colored covers (item no. 113058 to 113067) are available. Incl. external plug-in constant current transformer (230mA 20-40V DC, W=43 H=28,5 L=130mm). |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 10 W |
| Efficiency in LM | 80 |
| Active power | 10 W |
| Luminous flux in lumen | 800 lm |
| Permissible ambient temp. | -20°C - 40°C |
| Color temperature | 3000K |
| CRI Ra | 95 |
| Beam angle | 60° |
| Beam angle type | Horizontal + Vertical |
| Dimmable | Ja |
| Protection class | IP65 |
| Outdoor | Y |
| Pivotable | N |
| Housing material | Aluminum |
| Housing color | black |
| Poids en grammes | 300 |
| Height in mm | 48,0 |
| Diameter in mm | 83.00 mm |
| Hole cut-out | 68 mm |
| Hole cutout type | Circle |
| Installation depth in mm | 42 |
| Protection class | 2 |
| SELV | N |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| ext. Transformer height | 0.00 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
