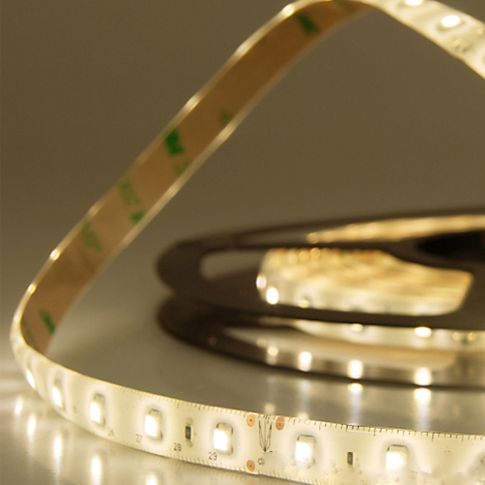

LED SIL830 flex stripe, 12V DC, 4,8W, IP66, 3000K, 5m roll, 60 LED/m
In stock
Article number
111904
| Article number | 111904 |
|---|---|
| Product description | LED SIL830 flex stripe, 12V DC, 4,8W, IP66, 3000K, 5m roll, 60 LED/m |
| GTIN - EAN | 9009377019708 |
| Features |        |
| Special features | Separation point: 50mm with 3 SMD each | Pitch (light point center-center): 16,67mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 7,5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | silicone encapsulation | Special feature: connection cable on both sides |
| Nominal voltage | 12 V DC |
| Efficiency in LM | 93 |
| Rated power | 4,8 W/m |
| Active power | 4,8 W/m |
| Luminous flux in lumen | 450 lm/m |
| RGB light source | No |
| Properties of connection cable | Anschlusskabel beidseitig |
| Color temperature | 3000K |
| CRI Ra | 85 |
| LED chips per metre | 60,00 |
| LED/disconnection point | 3.000000 |
| LED/roll | 300,00 |
| Cooling mass g/m | 0.00 g/m |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming type | PWM |
| Permissible ambient temp. | -20°C - 40°C |
| Potting material | Silikon |
| Pitch SMD (mm) | 16.67 |
| Max. length per feed (m) | 7.50 m |
| Type de ruban adhésif | 3M 300LSE |
| Protection class | IP66 |
| Outdoor | Y |
| Housing material | Silicone |
| Poids en grammes | 186 |
| Length in mm | 5000,0 |
| Width in mm | 10,0 |
| Height in mm | 3,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 2 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
| LED/disconnection point | 3.00 |
