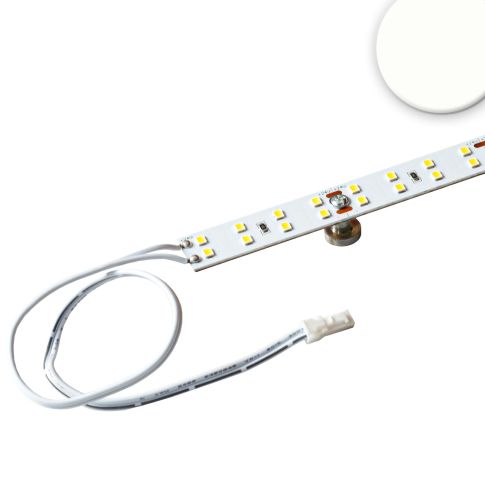

LED T5/T8 Retrofit circuit board 840, 85cm, MiniAMP, 136 LED, 24V, 14W, 170 lm/W, neutral white, dim
In stock
Article number
115996
| Article number | 115996 |
|---|---|
| Product description | LED T5/T8 Retrofit circuit board 840, 85cm, MiniAMP, 136 LED, 24V, 14W, 170 lm/W, neutral white, dim |
| GTIN - EAN | 9009377153556 |
| Features |      |
| Special features | Rigid circuit board incl. 3M VHB adhesive tape on the back and 2 holding magnets for fastening, 50mm separation point with drilled hole, 30cm connection cable with MiniAMP male plug on one side, wire cross-section 0,5mm² |
| Nominal voltage | 24 V DC |
| Efficiency in LM | 169 |
| Rated power | 14 W |
| Active power | 13,9 W |
| Luminous flux in lumen | 2350 lm |
| RGB light source | No |
| Color temperature | 4000K |
| Enclosed accessories | 2 Magnete |
| CRI Ra | 80 |
| Cooling mass g/m | 0.00 g/m |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming type | PWM |
| Permissible ambient temp. | -10°C - 40°C |
| Pitch SMD (mm) | 12.00 |
| Type de ruban adhésif | 3M VHB |
| Protection class | IP20 |
| Outdoor | N |
| Housing material | Copper |
| Poids en grammes | 74 |
| Length in mm | 850,0 |
| Width in mm | 15,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 60000 |
| Useful life L70|B50 | 90000 |
| Useful life L80|B50 in hours | 79000 |
| Guarantee in years | 5 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
